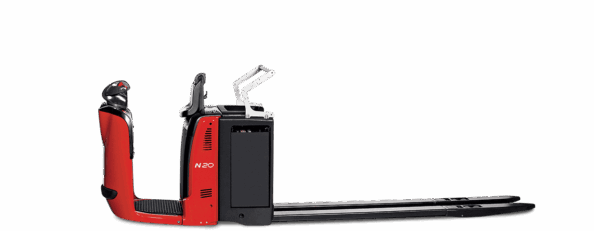

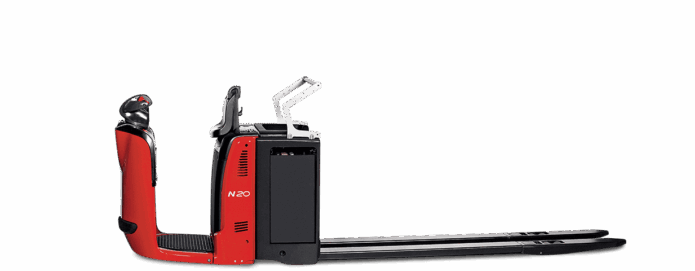

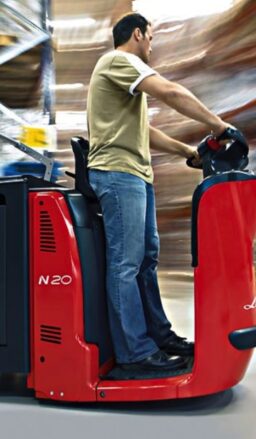

SERIES 1159
N20-N24HP
ELECTRIC ORDER PICKER
- 2.0 -2.4 tonnes capacity
- Electric Motor
- Ideal for Order Picking
The drive system has four-point contact configuration for maximum stability (N 20). The maximum speed is 10 km/h laden and 12 km/h unladen with automatic regenerative braking as traction butterfly is released to neutral or opposite direction of travel is selected. Electromagnetic braking initiated by the emergency stop button acts on the drive motor, proportional to the load carried. There is also a High-performance option with a five-point contact configuration for optimum stability (N 20 HP/N 24 HP). Electronically controlled, hydraulically suspended active castor wheels automatically select optimum ratio between stability and traction for constant ground contact.

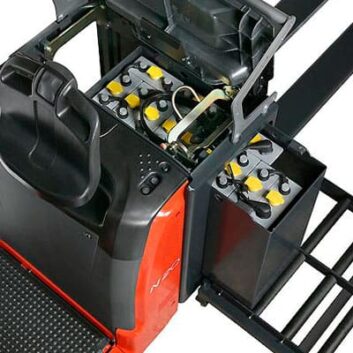

- Vertical battery change as standard, optional side battery change left or right
- Wide range of batteries (low & high) from 270 Ah (3 PzS) to 620 Ah (4 PzS)
- Battery locking system secures battery and assists the battery change

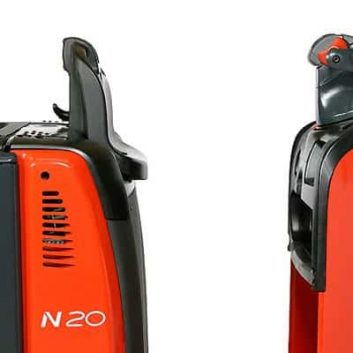

- Superbly functional twin-grip steering controller
- All controls ergonomically grouped on twin grip controller
- Optimum protection for both hands
- Twin-grip design minimises operator‘s arm movements when turning
- CAN bus diagnostic system for faster analysis and shorter service intervals
- Performance parameters can be configured by the service technician
- Wide, easy access from either side
- Ergonomic and intuitive control layout
- Generous storage compartments for shrink wrapping, pens, gloves, etc.
- Digital instrument display
- Padded, adjustable scoop seat provides additional comfort
- A cushioned platform isolates operator from surface vibrations
- Excellent all-round visibility
- Powerful, high-torque 3 kW AC drive motor
- Moisture and dust-proof maintenance-free motor
- 13% gradability performance fully laden
- Safe starting on gradients without rollback
- Responsive acceleration to maximum speed within 5 metres

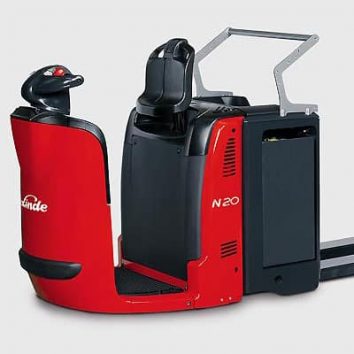

- Effortless, proportional electric power steering with positive feedback
- Self-centring steering for faster picking cycles
- Automatic speed reduction when cornering
The Linde drive system employing advanced control technology translates the powerful output of the maintenance-free AC traction and pump motors into seamless productivity. The 3 kW drive motor delivers full power to give 13% gradability and safe starting on gradients without rollback. A wide range of batteries is available to match individual order picking applications.
Unique Linde twin-grip steering and chassis design ensure that no part of operator‘s body is exposed outside its contours at any time. Steel front shield and twin-grip hand guard provide additional protection. The front driving position affords optimum visibility for enhanced safety and efficiency.
A perfect interface between operator and truck is assured with the new Linde N series design concept. The series incorporates the unique Linde twin-grip steering and control system for effortless travelling and manoeuvring. Truck functions are actuated by tactile, thumb operated dual controls intuitively grouped on the protected steering control head for ease of use by either hand. A low, cushioned platform and profiled scoop seat further enhance operator comfort.
Efficiency at work, efficiency in servicing. With uptime ratios of up to 1000 hours between services and a computerised diagnostic system, maintenance intervals are minimal and operating costs are reduced. Easy accessibility of all components and the maintenance free AC technology employed play an additional part in maximising uptime.
The new N series is constructed for consistent reliability in demanding applications. Its compact, robot-welded chassis ensures maximum structural integrity and durability. The rugged structure and components provide a low centre of gravity for excellent stability.
Whether you’re looking for a brand new forklift, a certified pre-owned used forklift or short-term and long-term forklift hire, Linde Material Handling Singapore has everything you need – all under the one roof.

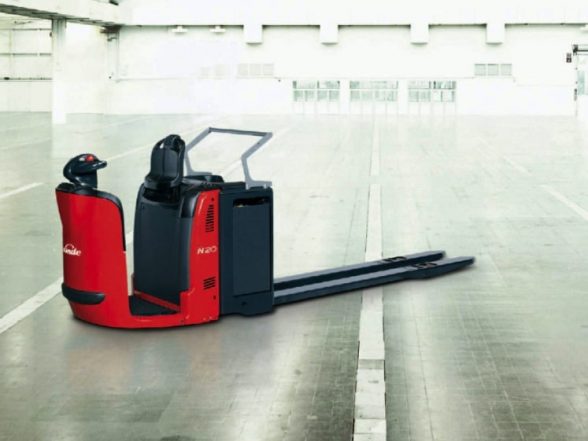

SERIES 1159 N20 ELECTRIC ORDER PICKER
